Hello MUZA®
First wireless multipoint audio system for background music.
The new standard for your events.
REVEALING NEW SENSES
First wireless multipoint audio system for background music.
MUZA®

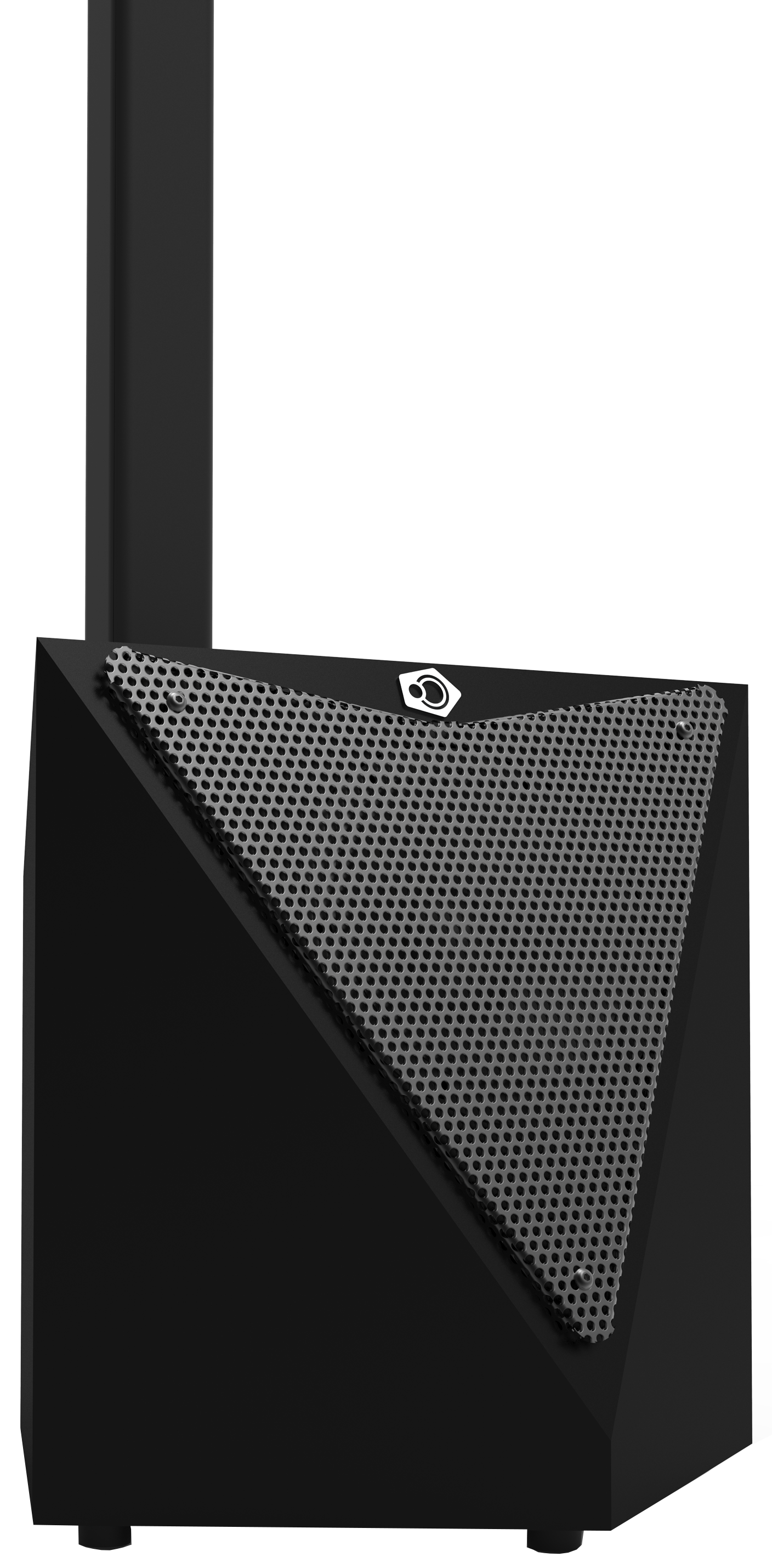

MUZA® is the first wireless multipoint audio system designed specifically for background music and public address - within event applications
INNLED’s product DNA now infused in an audio system :
- autonomous system, powered by reconditioned li-ion cells, offering up to 20h autonomy in a lounge type application.
- fast installation and operating, made possible for 1 person in less than 5min for 100m2.
- remote controllable within a UHF network, guaranteeing a smooth synchronization between masts - no latency.
- surprising and timeless design, packaged in a compact case for 3 masts.
MUZA® - The new rules of background music.
TECHNICAL FEATURES
- Mini « Line-Array » : 6 x 1 » Mid / Hi range
- Woofer : 5.5 » Low / Mid range
- Type of amplifier : Class D
- Output power : HF 100W @ 6Ω + LF 100W @ 4Ω
- Bandwidth : 45Hz - 18KHz (-6dB)
- Max SPL @1m : 105dB
- Coverage : V. 40° x H. 140°
- Efficiency : 90%
- DSP : Quad Core 1.2 GHz - 64-bit processor
- Remote Network Audio & Data (R’NAD®) : UHF 823-832 / 863-865 MHz Analog EU standard ISM – 200 KHz bandwidth - INNLED specific header
Battery and autonomy
- Battery : composed of two modules : 25,2V – 3 350 mAh – 85Wh per module.
- Li-Ion Samsung cells : reemployed li-ion 18650-35E samsung cells - UN38.3
- Autonomy : >20h @ 95dB Built in charger AC : 60W 100/240V - 50/60 Hz
- Complete charge : optimised @ 0,5 C for maximum cycling during 8H
- Warranty : 18 months
weight and dimensions
- 1m86
- 10kg
color and materials
- Black RAL 9005 (FT)
- Aluminium profiles and black Valc
uhf Transmitter - audio
The UHF transmitter is used to broadcast audio and data signals to multiple MUZA® masts. Easily connect the transmitter to a audio console for professional applications.
It includes an analog audio balanced stereo input, located on the back of the transmitter on two female XLR 3-pin connector (AUDIO IN).
Each MUZA® masts includes a built-in UHF receiver and automatically scans and locks on the right frequency with zero latency.
In order to deploy multiple masts in different zones, it is possible to use different frequencies on different transmitters - allowing several groups to coincide in the same venue.
UHF transmitter
- Licence-free frequencies
- 823-832 or 863-865 MHz
- 55 channels step 200 KHz
functionalities
- > 128 different ID
- General volume remote
POWER SUPPLY
- On mains
- USB - C type
Materials
- Aluminium casing
DIMENSIONS & weight
- 109 x 84 x 45 mm
- 350g
range compatibility
- MUZA®
A universal frequency
MUZA® TOUCH
emits to all Muza Audio masts
instantaneously allowing a smooth audio experience.
Muza touch is the master control of the concept ; all masts are satellites.
MUZA CASE
This compact case has been designed to welcome 3 MUZA® masts, allowing the coverage of around 100m2.
The choice of these cases was made to meet sustainable requirements.
It includes a Powercon cable which allows the products to be stored and charged directly in the case.
The suitcases are equipped with wheels, making it easy to move around.
A stack on wheels is also available in the range, allowing up to 3 suitcases to be stacked and moved around like a flightcase.
case
dimensions
- L1177 x W450 x H348mm
weight
- 11 kg (empty)
materials
- Fasteners : Nylon
- Axes : Nylon + fiberglass
- Body : Polypropylene
- copolymer
stack
dimensions
- L1180 x W440 x H145mm
weight
- 11,2 kg
materials
- Plywood
- Velcro® straps
- 4 wheels
